The Curious Case of Angular and the Infinite Change Event Loop

angular-infinite-event-loop

Angular change detection is a mystical wonder; akin to the Great Pyramid of Giza. This is the behind-the-curtain magic that makes Angular ‘just work’. Today we pull back the curtain on Angular change events and discover when they don’t ‘just work’ (and how to fix them).

I encourage you to follow along…

See the final project in the repository

Built with

  • Angular v9.1.1

Getting Started

Prerequisites

Get the newest vscode => https://code.visualstudio.com/download

Get the newest LTS node => https://nodejs.org

Installation

  1. Open a terminal where you want the project to be installed

  2. Install the Angular CLI globally

    npm install -g @angular/cli

  3. Create a new Angular project

    ng new infinite-loop --interactive=false

  4. Navigate into the repository

    cd infinite-loop

  5. Open the project in vscode

    code .

  6. Pop open the vscode terminal

    CTRL + `

  7. Start up the project

    npm start

  8. Open a Chrome browser here.

    http://localhost:4200

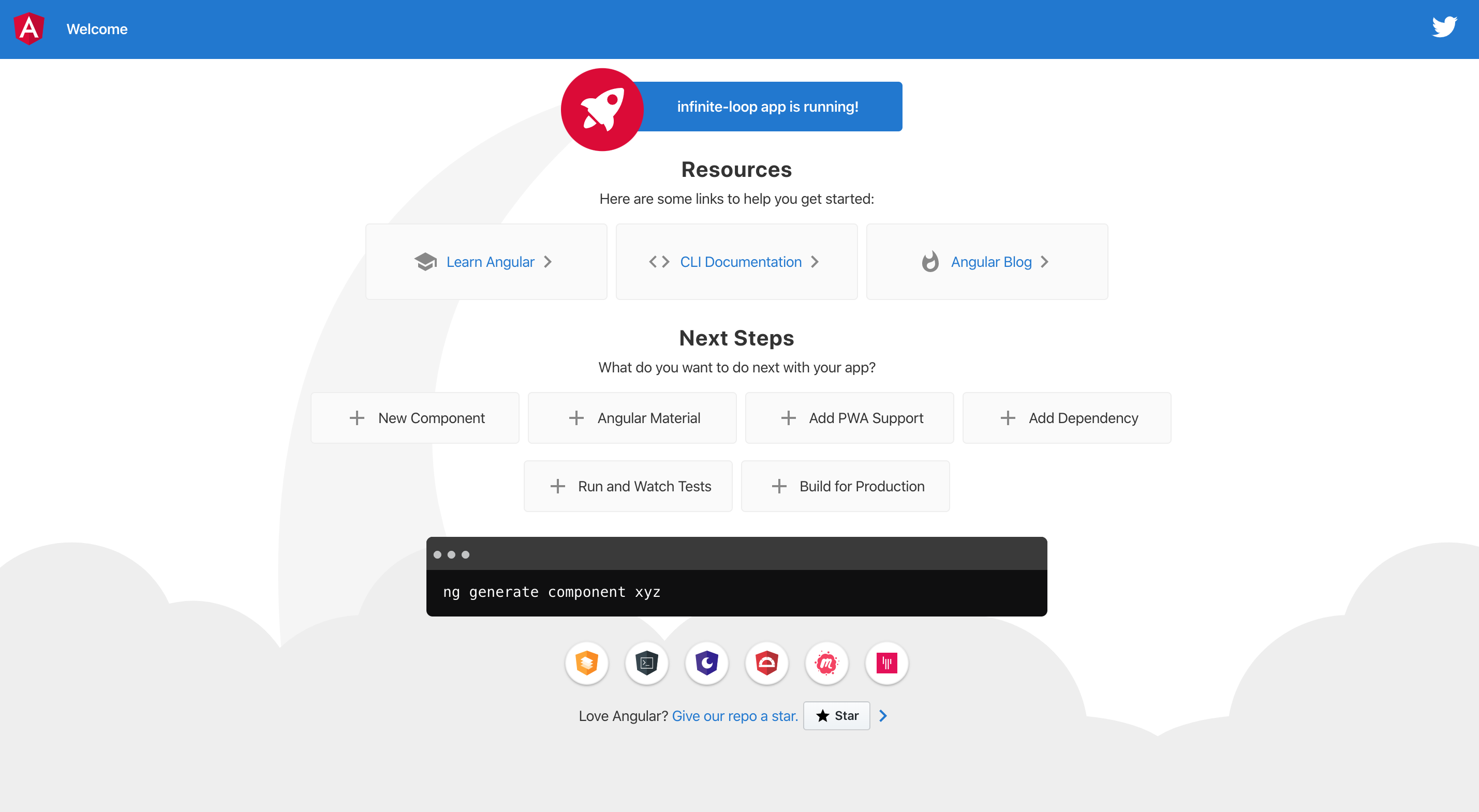

    initial-start

The Code

All started up? Great! Now let’s put some of our code in.

  1. Kill the server

    CTRL + C

  2. Generate a new component named “hello”

    ng generate component hello

  3. In src/app/hello/hello.component.html

    <p *ngIf="!isLoggedIn()">Are you there?</p>
<h1 *ngIf="isLoggedIn()">Hello {{user?.first}}!</h1>

  4. In src/app/hello/hello.component.ts

    import { Component, Input, AfterViewChecked } from "@angular/core";

@Component({
  selector: "hello",
  templateUrl: "./hello.component.html",
  styleUrls: ["./hello.component.css"],
})
export class HelloComponent implements AfterViewChecked {
  @Input() user: any;
  constructor() {}

  ngAfterViewChecked() {
    console.count("ngAfterViewChecked");
  }

  isLoggedIn() {
    if (this.user?.first) return true;
    else return false;
  }
}

  5. In src/app/app.component.html

    <hello [user]="user"></hello> <button (click)="login($event)">Login</button>

  6. In src/app/app.component.ts

    import { Component } from "@angular/core";

@Component({
  selector: "app-root",
  templateUrl: "./app.component.html",
  styleUrls: ["./app.component.css"],
})
export class AppComponent {
  user = { first: "", last: "" };

  login(e: MouseEvent) {
    this.user.first = "Bob";
    this.user.last = "Smith";
  }
}

  7. Start up the project again

    npm start

default-fine

This is how it should look. Clicking the login button calls the login method which changes the user’s name. The user object is passed into the hello component. The component checks for a first name and displays if one exists. In the hello component we log every time the ngAfterViewChecked Angular lifecycle hook is invoked.

Infinite Event Loop

Now, let’s say we want to do something 1 second after the hello component checks for login.

  1. In src/app/hello/hello.component.ts
import { Component, Input, AfterViewChecked } from "@angular/core";

@Component({
  selector: "hello",
  templateUrl: "./hello.component.html",
  styleUrls: ["./hello.component.css"],
})
export class HelloComponent implements AfterViewChecked {
  @Input() user: any;
  constructor() {}

  ngAfterViewChecked() {
    console.count("ngAfterViewChecked");
  }

  isLoggedIn() {
    setTimeout(() => {
      // do something after 1 second
    }, 1000);

    if (this.user?.first) return true;
    else return false;
  }
}

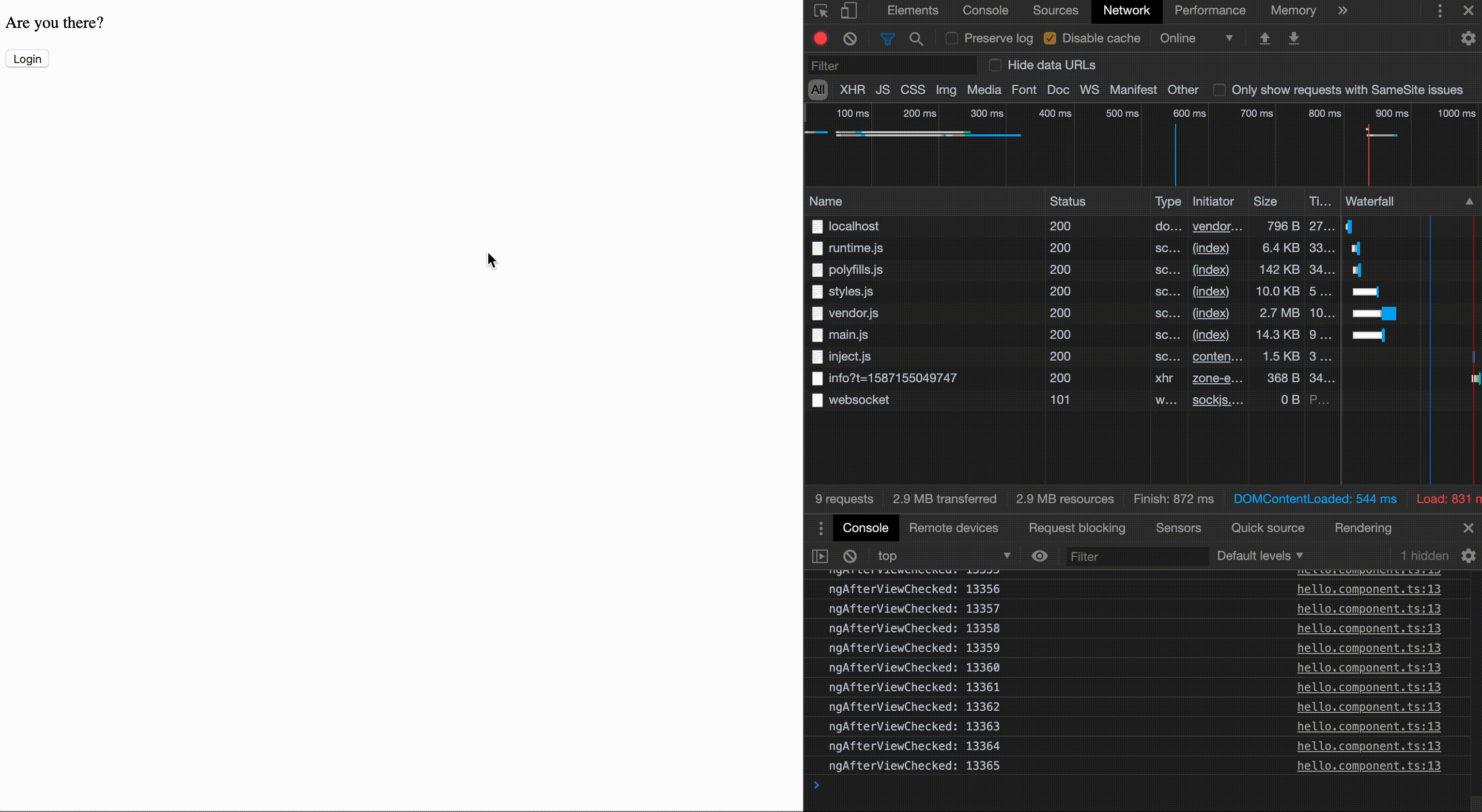

default-oops

Woopsie! We have just entered an endless event loop and my Macbook Pro gave me third-degree burns on my thighs.

computer-fire

The Fix

So what happened?

Calling setTimeout causes a change event to fire. The change event cause the isLoggedIn() method to run. Which causes another setTimeout and so on and so on. This is the default change detection strategy. To make Angular “just work” it checks for changes on several things. There are a couple things we can do to fix this. And make our application more efficient too.

  1. NgZone
  2. OnPush

NgZone

  1. In src/app/hello/hello.component.ts
import { Component, Input, AfterViewChecked, NgZone } from "@angular/core";

@Component({
  selector: "hello",
  templateUrl: "./hello.component.html",
  styleUrls: ["./hello.component.css"],
})
export class HelloComponent implements AfterViewChecked {
  @Input() user: any;
  constructor(private zone: NgZone) {}

  ngAfterViewChecked() {
    console.count("ngAfterViewChecked");
  }

  isLoggedIn() {
    this.zone.runOutsideAngular(() => {
      setTimeout(() => {
        // do something after 1 second
      }, 1000);
    });

    if (this.user?.first) return true;
    else return false;
  }
}

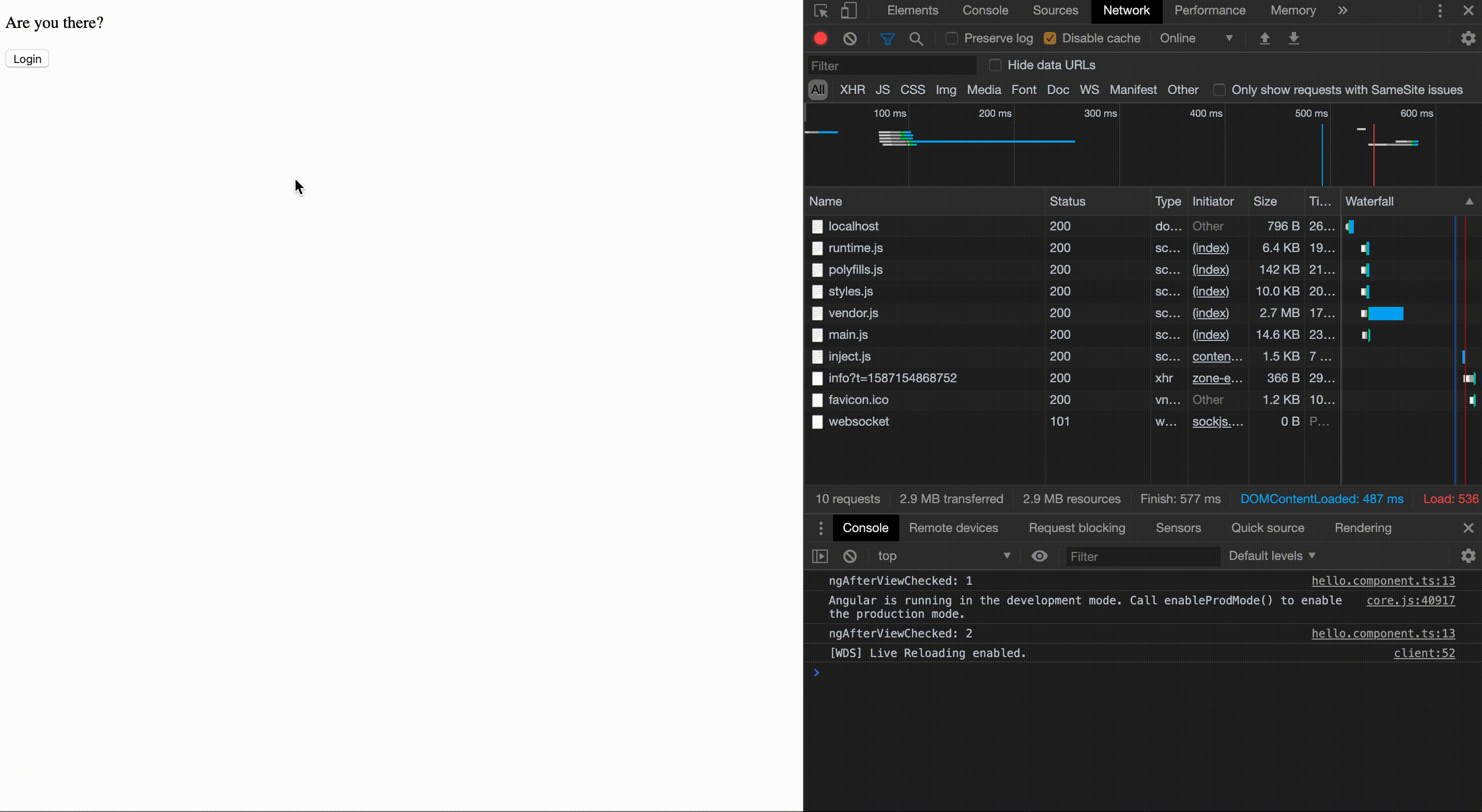

default-ngzone

We wrapped our setTimeout with NgZone.runOutsideAngular. This tells Angular to not fire a change event for this section of code.

OnPush

  1. In src/app/hello/hello.component.ts
import {
  Component,
  Input,
  AfterViewChecked,
  ChangeDetectionStrategy,
} from "@angular/core";

@Component({
  selector: "hello",
  templateUrl: "./hello.component.html",
  styleUrls: ["./hello.component.css"],
  changeDetection: ChangeDetectionStrategy.OnPush,
})
export class HelloComponent implements AfterViewChecked {
  @Input() user: any;
  constructor() {}

  ngAfterViewChecked() {
    console.count("ngAfterViewChecked");
  }

  isLoggedIn() {
    setTimeout(() => {
      // do something after 1 second
    }, 1000);

    if (this.user?.first) return true;
    else return false;
  }
}

onpush-oops

We set the Angular change detection strategy from ChangeDetectionStrategy.Default (look for changes everywhere) to ChangeDetectionStrategy.OnPush which will only detect changes when the @Input() has a new object pushed on it. In this case, when there is a new user object.

But, whoops. Nothing happened when I clicked the login button. The problem here is that we are directly mutating the existing user object.

  app.component.ts
  ...

  login(e: MouseEvent) {
    this.user.first = 'Bob';
    this.user.last = 'Smith';
  }

  ...

With the OnPush strategy we must push a new object through the hello component. Try this instead.

  1. In src/app/app.component.ts

    import { Component } from "@angular/core";

@Component({
  selector: "app-root",
  templateUrl: "./app.component.html",
  styleUrls: ["./app.component.css"],
})
export class AppComponent {
  user = { first: "", last: "" };

  login(e: MouseEvent) {
    this.user = { first: "Bob", last: "Smith" };
  }
}

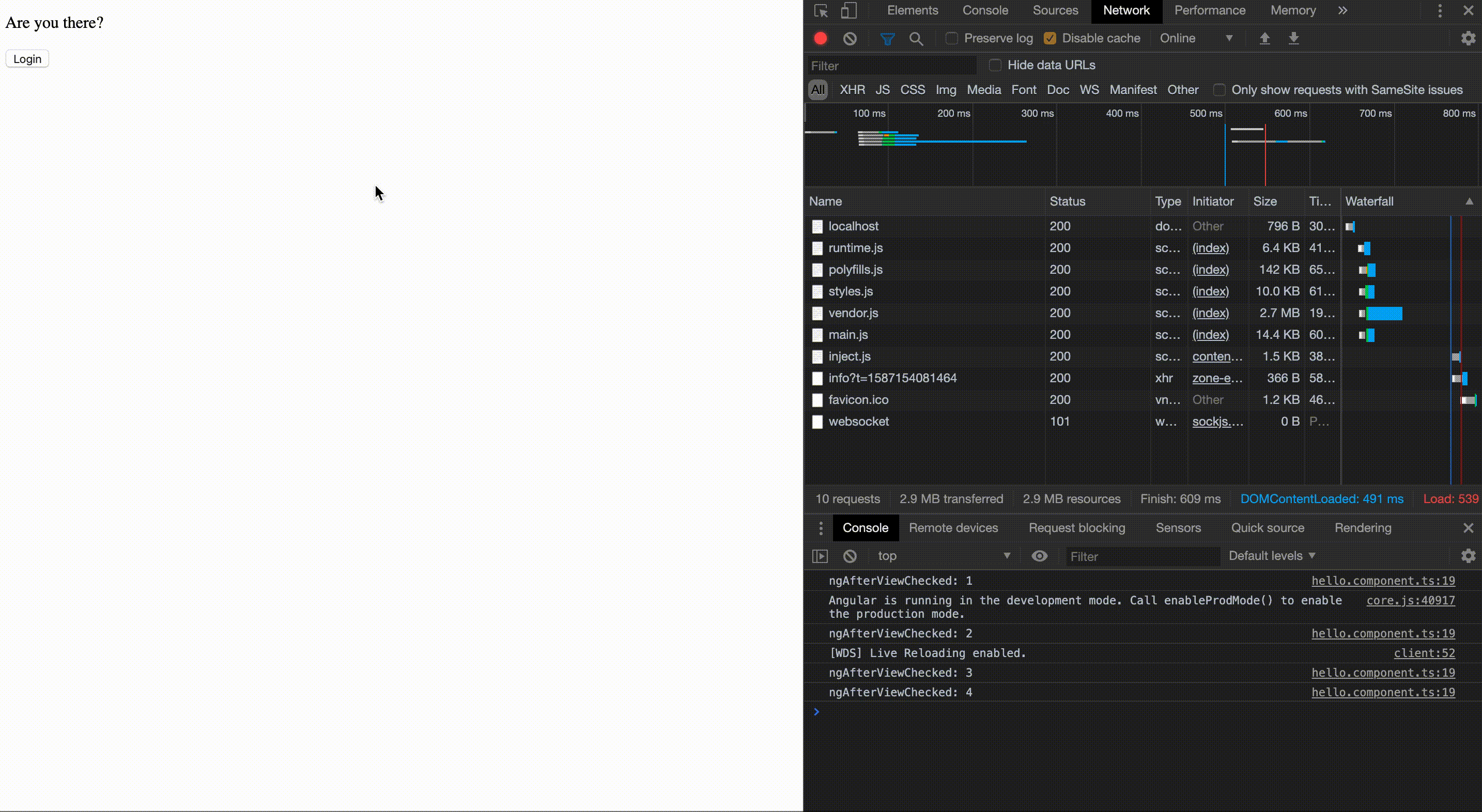

onpush-fixed

There. Now its working.

But look carefully and you will notice that 1 second after the the login button is pressed there are some more events. This is due to the setTimeout returning a second later.

Conclusion

In conclusion, which is best for solving the infinite event loop, 1) NgZone or 2) OnPush? Plot twist! I choose 3) All of the above.

  1. In src/app/hello/hello.component.ts
import {
  Component,
  Input,
  AfterViewChecked,
  NgZone,
  ChangeDetectionStrategy,
} from "@angular/core";

@Component({
  selector: "hello",
  templateUrl: "./hello.component.html",
  styleUrls: ["./hello.component.css"],
  changeDetection: ChangeDetectionStrategy.OnPush,
})
export class HelloComponent implements AfterViewChecked {
  @Input() user: any;
  constructor(private zone: NgZone) {}

  ngAfterViewChecked() {
    console.count("ngAfterViewChecked");
  }

  isLoggedIn() {
    this.zone.runOutsideAngular(() => {
      setTimeout(() => {
        // do something after 1 second
      }, 1000);
    });

    if (this.user?.first) return true;
    else return false;
  }
}

onpush-ngzone

And now you are a little bit cooler programmer.

computer-fire

Written on April 17, 2020
